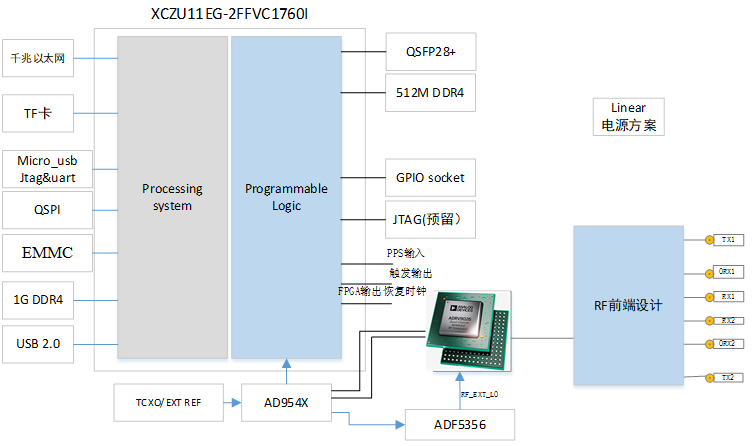

1、HJX-ADRV9026-SDR SYSTEM DIAGRAM DESCRIPTION

  HJX-ADRV9026-SDR is highly customizable. It can provide wide bandwidth and tuning range for various applications. It includes one ADRV9026 Quad-channel transceiver and one Xilinx Zynq Ultrascale plus MPSOC XCZU11EG. It makes the whole platform obtain powerful data processing ability. Meanwhile, it has a 1GB DDR4 equipped for SoC programming system and has a 512MB DDR4 equipped for SOC programming logic part. It provides great flexibility for the development of custom applications. Besides, it provides 32GB EMMC flash memory for data storage and a Nor Flash 64MB as user flash, and also reserves additional options to start the system via SD card.

  For the clock circuit of HJX-ADRV9026-SDR, it select AD9545 as the main clock chip, plus clock buffer to expand the number of clock channels. Please kindly note that AD954X series chips support synchronous source input, such as GPS second pulse, IEEE1588 etc.

  RF front end of HJX-ADRV9026-SDR provides hardware support for ADRV9026 RX QEC, TX QEC and LO Leakage calibration. At the same time, this board provides front LNA to ensure better receiver performance, and also provides gain block at the transmitter to ensure high output signal power. Since the ADRV9026 chip reserved external LO input pin ( but API does not support the external Lo function at this stage), HJX-ADRV9026-SDR also reserves the hardware circuit of external LO. If in the future the API of ADI can support the function of external LO, the user can develop this part of function by himself.

  HJX-ADRV9026-SDR has a wide range of I / O functions and can use various high-speed I / O, including QSFP, TF card, USB2.0, Gigabit Ethernet, power switch, Mini USB downloader and debug port. A 40G QSFP interface was reserved on the hardware board for the customer to further develop high-speed transmission interface for data transportation in the future. Besides, 36 channel- GPIO pins are introduced from HD Bank of FPGA for communication with external modules. Xilinx FPGA Downloader is also integrated, which can easily realize FPGA program download and serial port communication.

  Meanwhile, HJX-ADRV9026-SDR is compatible with ADRV9029 in hardware design. If change the ADRV9026 to ADRV9029, then we can realize DPD function by just opening the related API on software, and can greatly improve the linearity and efficiency of the power amplifier.

  HJX-ADRV9026-SDR’s circuit design idea and programming logic makes it easy for customers to evaluate and design. Then it is integrated into the customized carrier seamlessly for further prototype design and shortening the time to market of the final product.

2、HJX-ADRV9026-SDR SYSTEM TECHNICAL SPECIFICATIONS

Note: Select the corresponding balun model according to different application frequency bands. The balun sealed package is 0805. The default balun model of the board is HHM1525.

3、HJX-ADRV9026-SDR INTERFACE SPECIFICATION

a)         Input（receiver）: MCX-KE(4pcs);

b)        Output ( transmitter): MCX-KE(4pcs);

c)         Feedback channel (receiver): MCX-KE(4pcs);

d)        External clock input interface: MCX-KE(1pc);

e)         External LO input interface: MCX-KE（2pcs）, reserved;

f)         Gigabit network port: RJ45（1pc）;

g)        SD card connector: Micro SD（1pc）;

h)        100G Optical module interface: QSFP(1pc）;

i)          USB-UART interface port &JTAG interface port: Mini-USB（1pc）;

j)          Power supply port: VH3.96mm 2pin（1pc）;

k)        PHD2.0 connector: 2X10PIN（2pcs）

4、HJX-ADRV9026-SDR TEST DATA

4.1. In-band harmonics

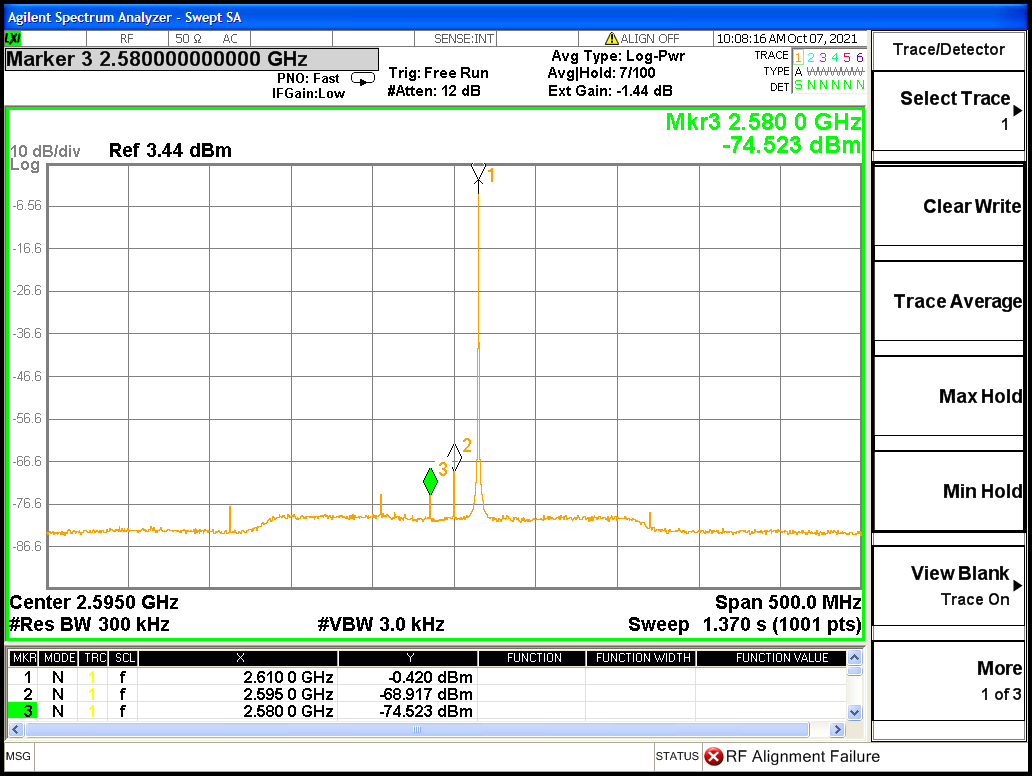

Test condition: Single tone signal mode.The signal is provided by the signal source and output to the spectrum analyzer after passing through the HJX-ADRV9026-SDR development board to observe the spectrum, as shown in the figure below.

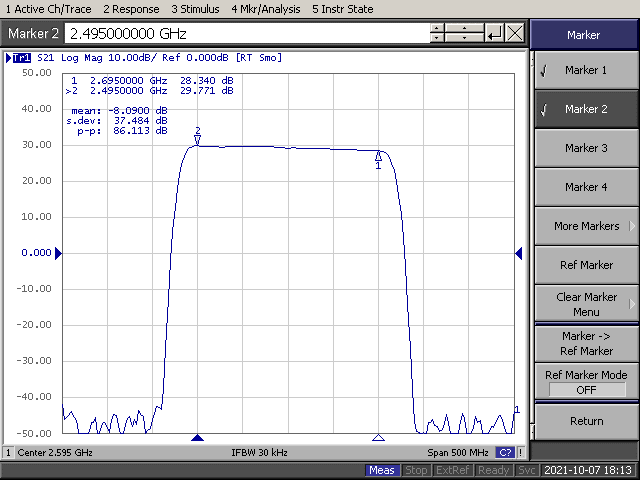

4.2. Frequency response

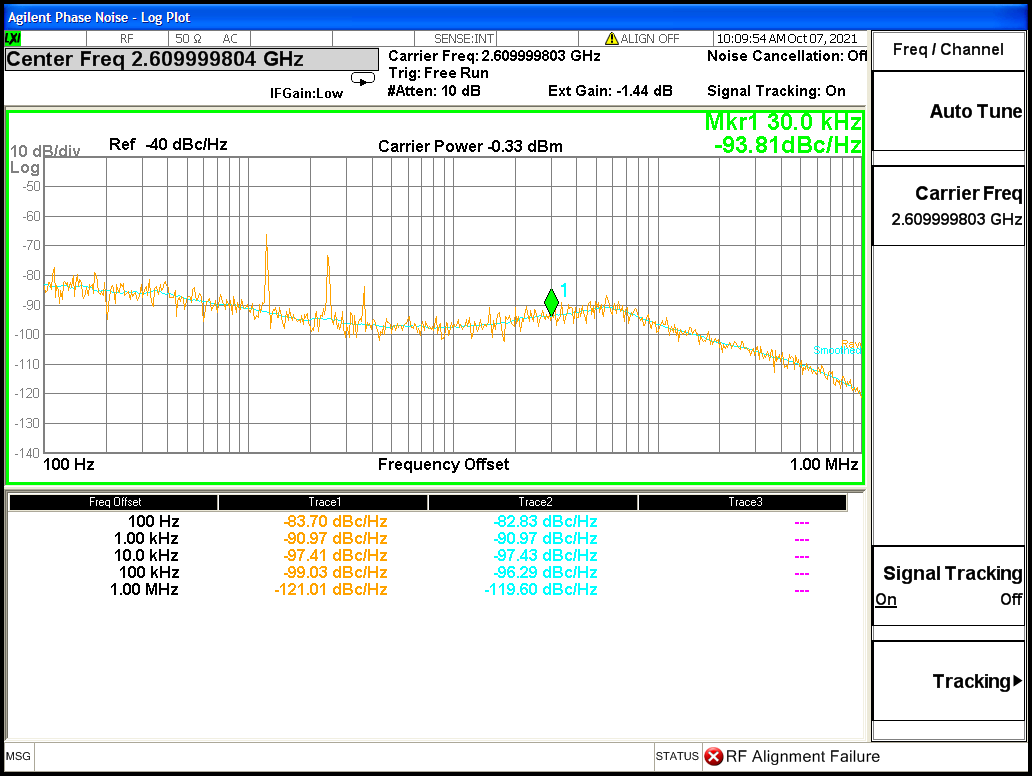

4.3. Phase noise test

4.4.Time delay

Test conditions: CDMA pilot signal mode, signal source input power is -35dbm, after HJX-ADRV9026-SDR development board, output to spectrum analyzer, the total delay tested is 1.38us (including test system delay 0.36us).

4.5.ACPR

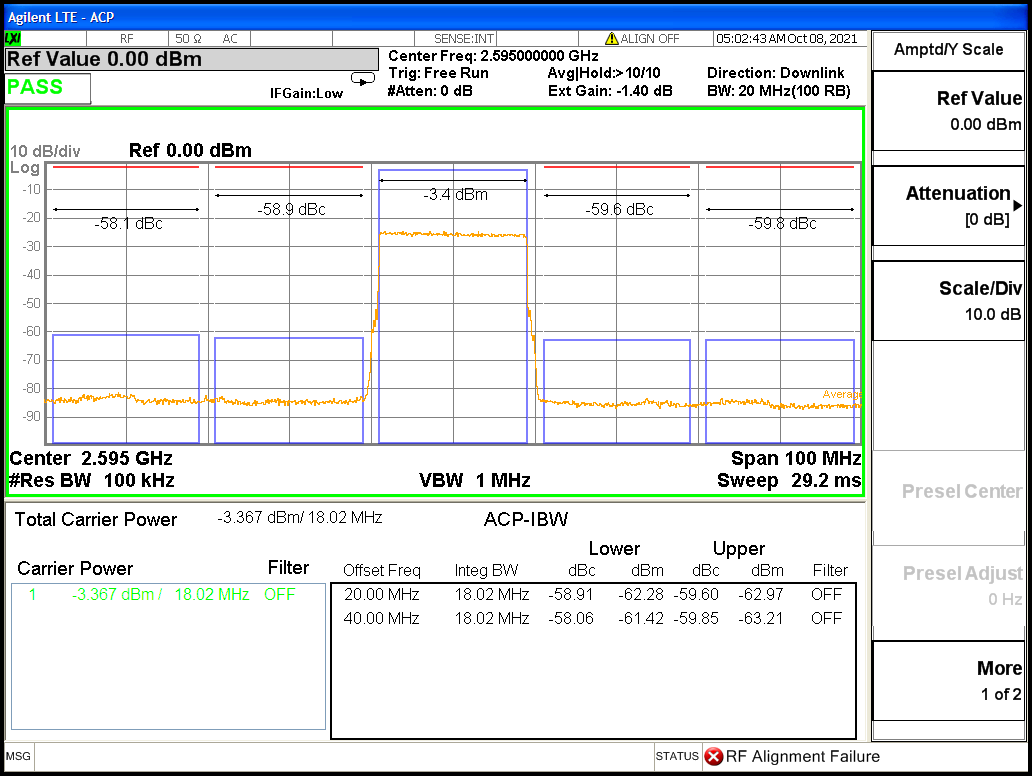

Test conditions: HJX-ADRV9026-SDR setting conditions, RX local oscillator is set to 2595MHz, TX local oscillator is set to 2595MHz, TX attenuation value is 10dB.Fdd-lte signal mode, the input frequency is set to 2595MHZ, and the input power of signal source is -32.5dbm. After hJX-ADRV9026-SDR development board, the output power to the spectrometer is -3.3dbm.

For more test data, please contact HeJiaXing regional sales manager.
